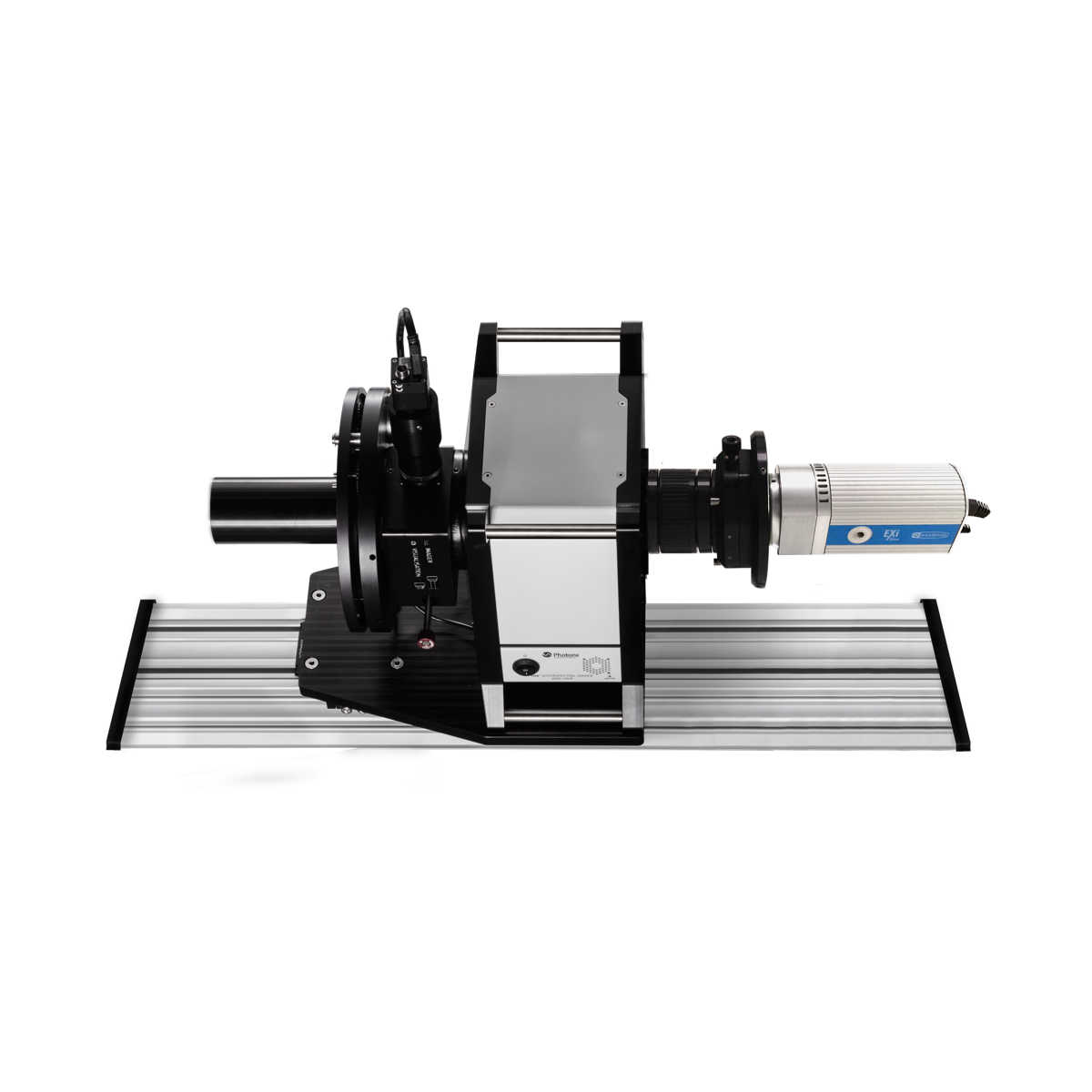

Hyperspectral Wide-Field Camera

V-EOS is a global hyperspectral camera continuously tunable from 400 to 1000 nm. It generates a hyperspectral data-cube with spatial information along the X-Y axes and spectral information along the Z-axis. Photon etc.’s global-imaging technology extracts a data-cube from a handful of monochromatic images without the need for image reconstruction. The field of view covered can be adjusted depending on the application and sample size. V-EOS is designed for reflectance, transmittance and luminescence imaging.

V-EOS opens the door to

  • Photovoltaic materials characterization
  • Ionized gas characterization
  • Counterfeit examination
  • Forensic research
  • Food and plant sorting

The Plasma Research Group at the University of Montreal integrated the V-EOS as a characterization instrument for their various plasma types. This imaging system enables the analysis of key intrinsic plasma parameters, such as electron density, temperature, and electric field intensity.

Product Specifications

Technical Specifications
Spectral range 400 - 1000 nm
Spectral resolution (FWHM) < 2 nm
Camera sCMOS
Spectral channels Continuously tunable
Entrance slit size No slit / Full field of view measured for each wavelength
Standard field of view (customizable) 160 mm x 160 mm, 20 mm x 20 mm, other fields of view available upon request
Options & Accessories Absolute photometric calibration, Laser excitation, White light illumination, Micro-imaging modality: 5X, 10X.

Videos

Hyperspectral imaging of argon plasma jet

The team at Université de Montreal, featuring Professor Luc Stafford and researcher Fatima Khazem, recently showcased their latest publication, "Hyperspectral imaging of a microwave argon plasma jet expanding in ambient air."

This research discusses the complexities of non-equilibrium plasmas at atmospheric pressure using advanced hyperspectral imaging. The V-EOS hyperspectral imaging system from Photon etc., enhanced their ability to measure electronic temperature, electronic density and electric field intensity.

White Papers

Hyperspectral Imaging in Counterfeit Ink and Banknote Identification

Authors Marie-Christine Ferland, Marc Verhaegen & Vincent Cardin

Abstract

Dive deeper into document authentication with our recently published white paper: "Hyperspectral Imaging in Counterfeit Ink and Banknote Identification." Building on the insights from our recent application note, this white paper explores in greater detail the groundbreaking capabilities of our Grand-EOS hyperspectral camera. With its range of 400 to 1650 nm, the Grand-EOS not only identifies…

Custom Products

Beyond our standard product lines, we bring to bear our know-how through collaborations with industry and researchers both local and international. It’s in our DNA to build systems that measure up to the high standards set by our customers in science and industry. Please visit our Special Projects page or contact us if you don’t see what you are looking for in our standard product lines.
