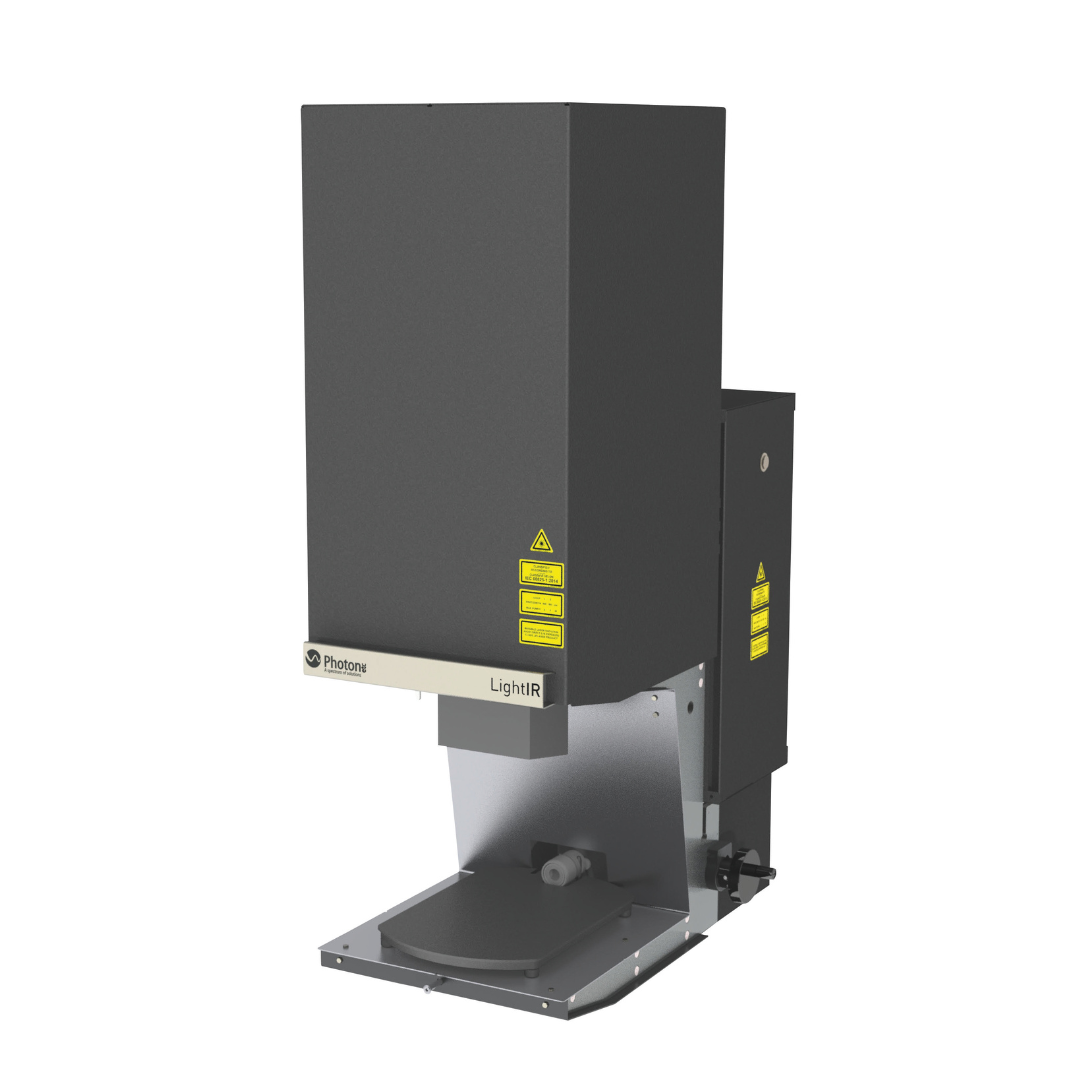

Open near infrared fluorescence imaging
The LightIR is an open fluorescence imaging device designed for preclinical fluorescence imaging or clinical research.
Vascular imaging in mouse after injection of NIR-II fluorescent nanoparticles
Key Features:
1. Near infrared fluorescence and NIR-II fluorescence
2. Preclinical studies, or clinical studies under IRB approval
3. Small or large animals
List of common fluorescent moieties used with the LightIR:
- Cy5, Cy5.5, Cy7, IRDye 700 and IRDye 800 from LiCOR, Indocyanine Green (ICG), ZW 800
- Rare earth (lanthanides), quantum dots and various fluorescent nanoparticles
- The various IVISense fluorescent agents (680, 700, 800)
- Alexa Fluor AF 680, AF 700, AF 750, AF 790
- infrared fluorescent protein: iRFP
Near infrared and NIR-II fluorescence
- Limited autofluorescence
- Great depth penetration
- Better resolution
NIR-II fluorescence (900 to 1650 nm)
- Virtually no autofluorescence
- Imaging through skull, bone, melanin (melanoma studies)
Product Specifications
Imaging modes | NIR-I or NIR-II fluorescence, brightfield, subtracted, overlay. Optional: RGB brightfield |
---|---|
Real-time processing | Background subtraction, brightfield/fluorescence overlay |
Emission spectral range | NIR-I : 650 - 900 nm, NIR-II : 900 - 1600 nm |
Fluorescent channels | 1 or 2 channels |
Available excitation wavelengths | 640 nm, 690 nm, 750 nm, 785 nm, 808 nm, 980 nm |
Emission filters | Set according to chosen excitation wavelengths |
Field of view | 7 cm x 7 cm |
Detector | CMOS (NIR-I) or Alize 1.7 InGaAs (NIR-II) |
Image size (px) | 1024 x 1024 (NIR-I) or 512 x 512 (NIR-II) |
Output format | TIFF images (16 bits) with metadata |
