Infrared Microplate Reader
Excite your probes at any wavelengths to validate their NIR-II emissions

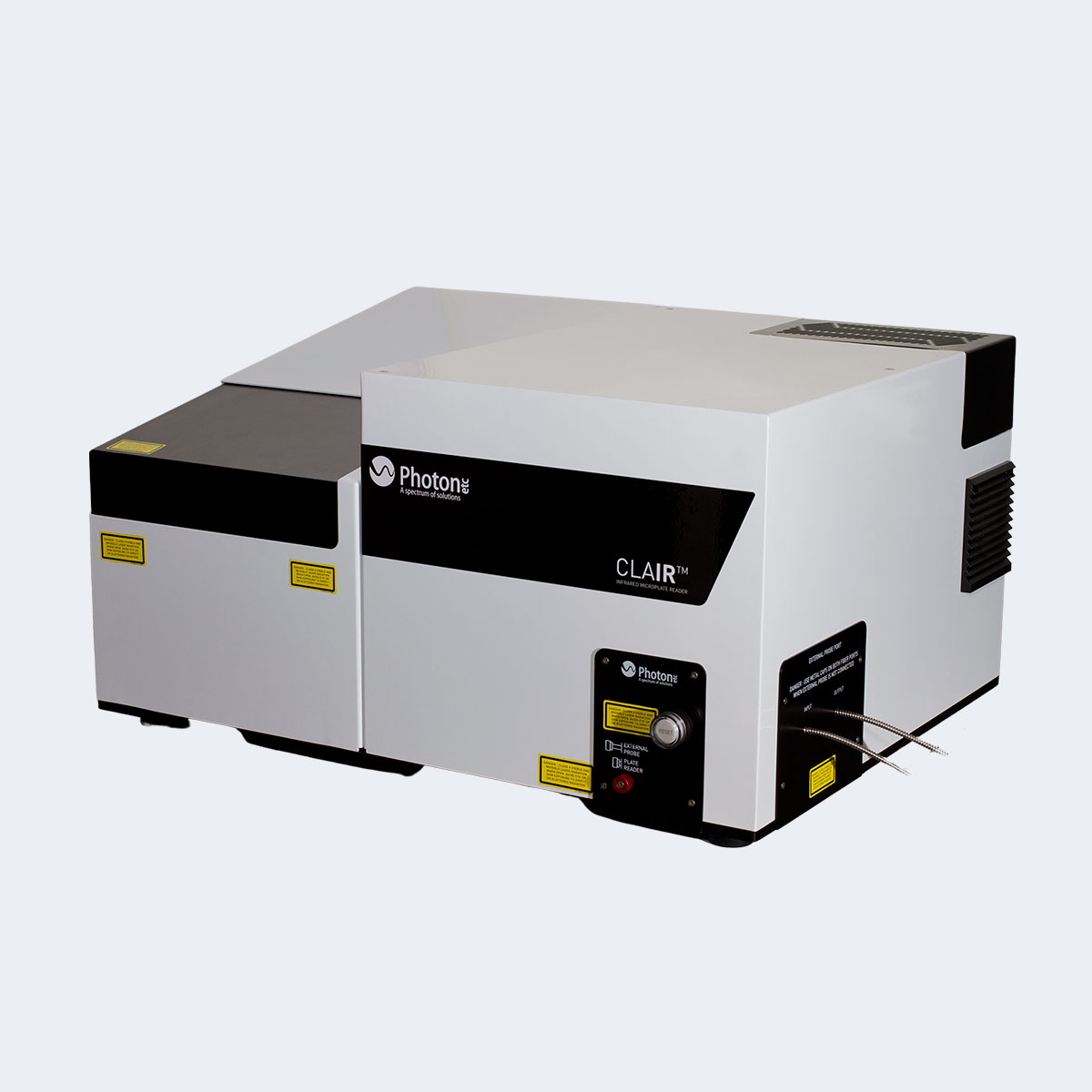

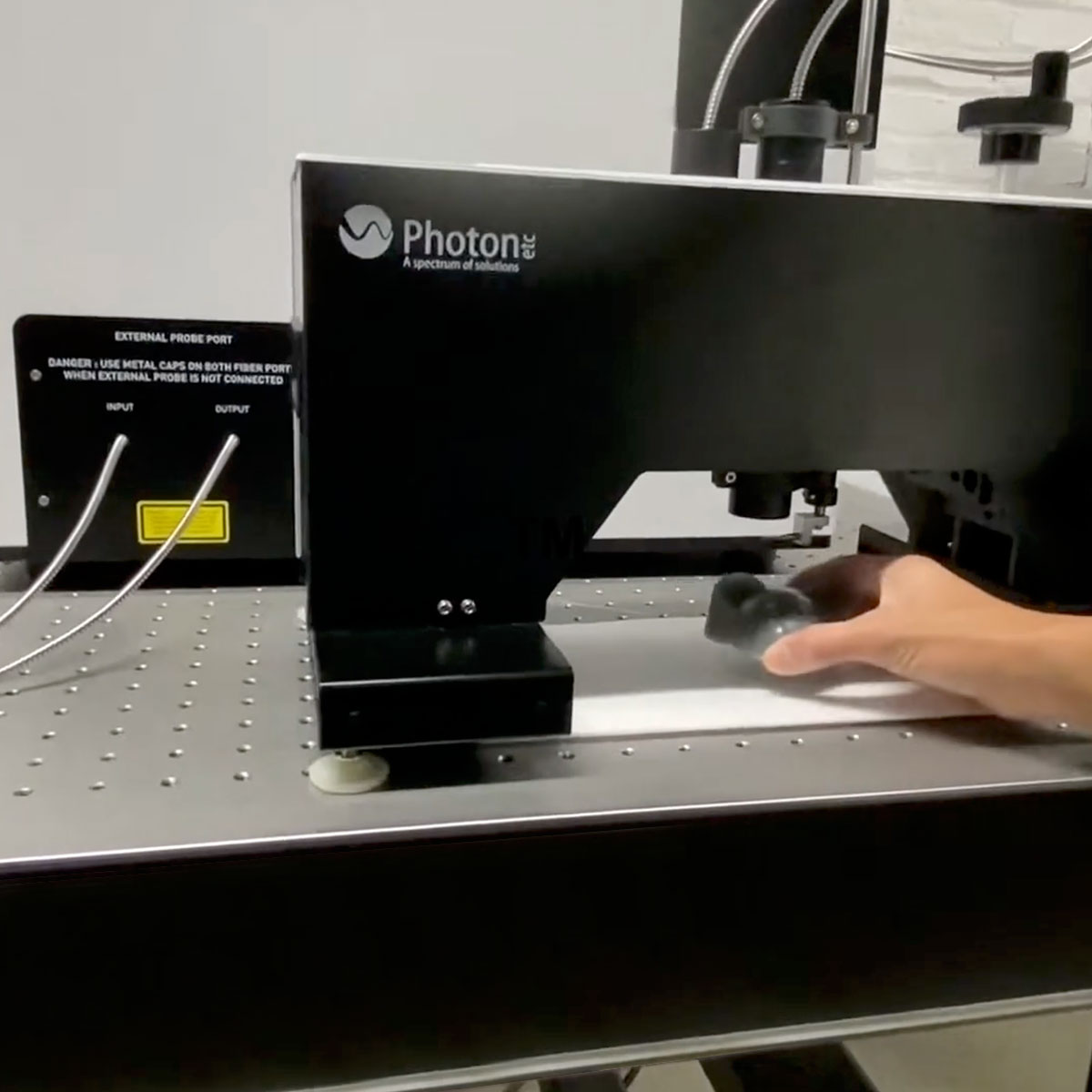

The ClaIR NIR-II microplate reader is able to capture full fluorescence spectra from 900 nm to 1600 nm and the transmittance spectrum from 500 nm to 1600 nm. Using the included software, the ClaIR plate reader can perform a range of endpoint and kinetic applications. The instrument comes with your preferred laser-based excitation sources, which can be complemented by a high-power tunable light source. An optional benchtop probe is available, extending the capabilities to in vivo measurements.

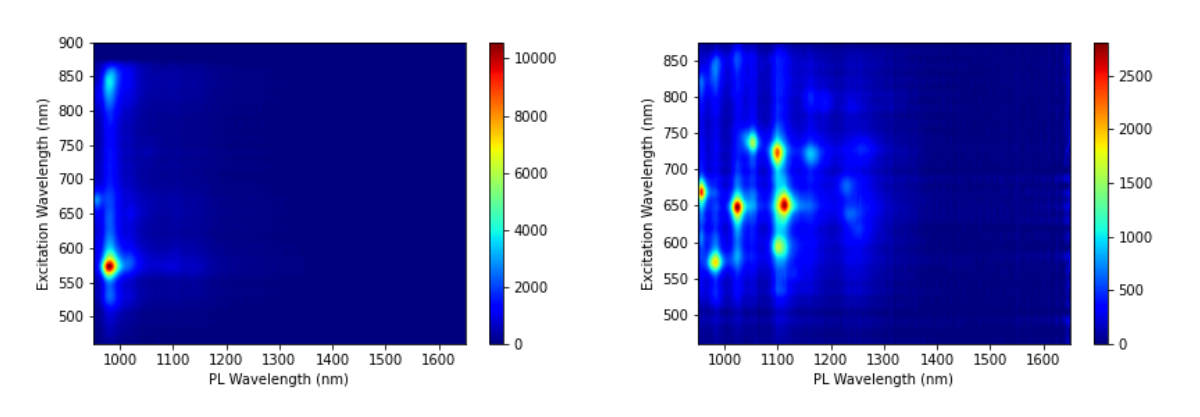

Photoluminescence map of single wall carbon nanotubes obtained by ClaIR
Product Specifications
| Detection modes | Absorbance and fluorescence spectroscopy |
|---|---|
| Microplate formats | 96-well plates |
| (complying with ANSI/SLAS 1-2004 through 6-2012) | |
| Absorbance light sources | Halogen white lamp |
| Absorbance spectral range | 500 - 1600 nm |
| Fluorescence light sources | 650 nm and 735 nm laser diodes |
| fiber entry for optional tunable light source (optional) | |
| Fluorescence spectral range | 900 - 1600 nm |
| Detection | High sensitivity VIS and IR spectrometer |
| Z-adjustment | Focal height adjustment (0.1 mm resolution) |
| Read height | Adjustable bottom to mid well height |
| Software | Data acquisition software |
| Data format | CSV |
| Computer interface | USB |
| Line voltage | 120 - 230 VAC |
| Dimensions | 690 x 535 x 275 mm |
| Weight | 40 kg |
Spec Sheet
Videos
CLAIR and IRINA, a perfect combination for a sophisticated customization request
To fulfill a special order, our team created a unique system combining our ClaIR and IRina products. Our engineers made sure that the system uses the same laser source for both products.
For any customization request, contact us at sales@photonetc.com.
White Papers
In Vivo NIR-II Imaging: A Disruptive Force for Preclinical Research
Authors Stephen Marchant, Jacob Yvon-Leroux and Émilie Beaulieu Ouellet
